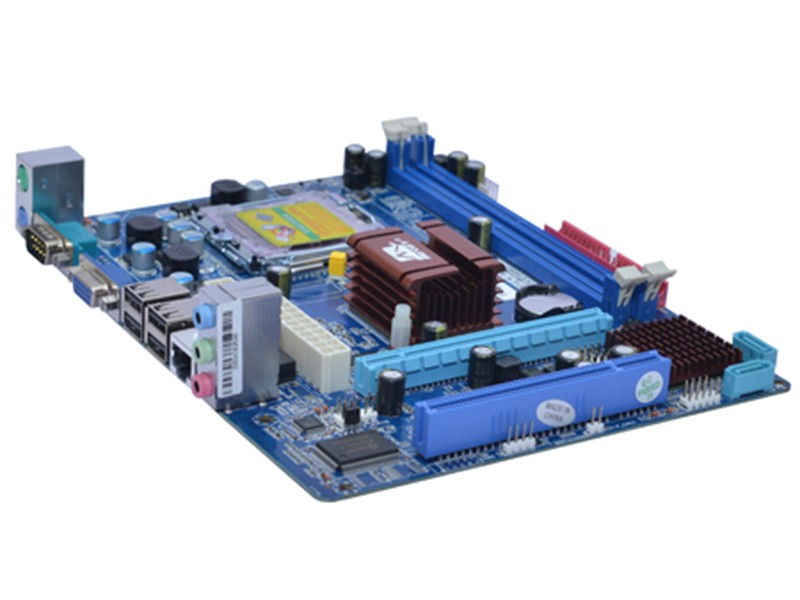

ME31QZ
ME31QZ
Specifications
| Processor | Intel core 2/ Core 2 duo / Pentium / Celeron processor in LGA775 Package Support 4-pin CPU fan pinheader with fan speed control |
| Chipset | North Bridge: intel chipset South Bridge : intel ICH7 chipset |
| Memory Support | 4GB Memory (max), Dual Channel DDR2 667/800 2xDDR2 DIMM slots (240Pin / 1.8V) |
| LAN | Support 10/100Mbps, Fast Ethernet by Realtek 8105E |
| Audio | Chip integrated by Realtek ALC662 Supports 5.1channels audio ou Compliant with Azalia 1.0 spec |
| Storage Interface | 1 IDE Port by Intel ICH7 Supports ultra DMA 66/100, PIO & Bus Master operation mode 2 sata ports by intel ICH7 |
| Backpanel | 4 x USB 2.0, 1 x Parallel port, 1 x PS2 Mouse, 1 x PS2 keyboard, 1 x serial (Com1) port, 1 VGA Port, 1 LAN Jack, 3 Flexible audio jack |
| On board pinheaders | 2 x USB2.0 1 x Front panel audio 0/1 COM Connectors |
| slots | 1 PCIE x 16 slot 1 PCI slot supports 3.3V / 5V PCI bus interface |
| Form Factor | Micro ATX |
| Mounting holes | 6 mounting holes |
