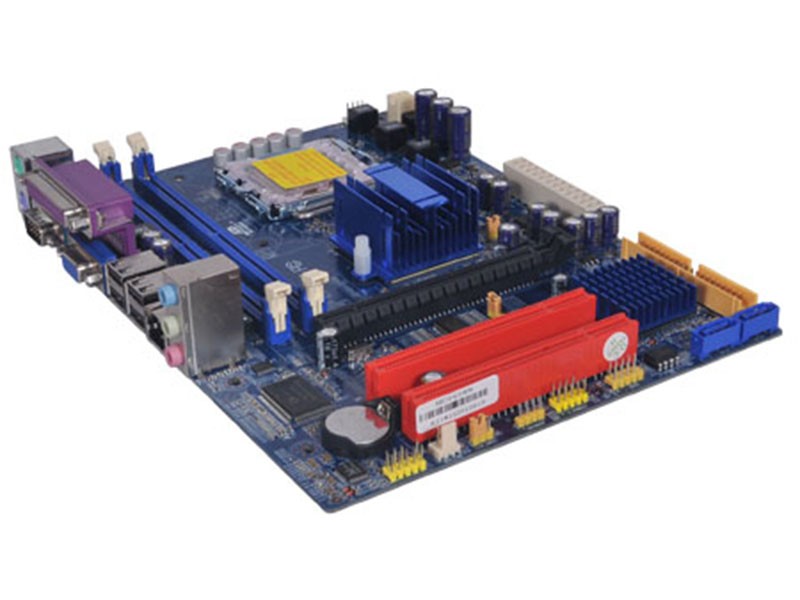

ME945WW
ME945WW
Specifications
Processor Support | intel Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA 775 package (for the latest information about CPU, please visit check with manufacturer) |
Supported FSB | 533 / 800 / 1066 / 1333 MHz |
Chipset | North Bridge : Intel 945 Chipset South Bridge : Intel ICH7 Chipset |
Memory Support | DDR2 800/667/533 SDRAM (2GB Max) 2 DDR2 DIMM slots (240 pin / 1.8v) For more information on compatible components, please check with manufacturer) |
LAN | Supports 10/100 Mbps Fast Ethernet by Realtek (optional) or supports PCIE LAN 10/100/1000 Mbps Fast Ethernet Realtek RTL8111C (optional) |
Audio | Chip Integrated by Realtek ALC 661/ALC662 Up to 5.1 Channel audio-out Vista Premium compilance |
IDE | 1 IDE port supports ultra DMA 66/100 mode supports PIO, Bus Master operation mode |
SATA | 2 SATA Ports Supports storage and data transfers at up to 300MB/s |
Slots | 1 PCI Express x 16slot 1 PCI slot(Support 3.3V / 5V PCI bus interface) |
Back panel | 1 PS/2 Keyboard Port 1 VGA Port 4 USB2.0 Ports 3 Flexible audio Jacks 1 PS/2 Mouse port 1 LAN Jack 1 Seriel Port(COM1) 1 Parallel Port supporting SPP/EPP/ECP mode |
On-Board Pinheaders / Connectors | 1/2 USB 2.0 pin headers(optional) 1 Front panel audio pinheader 1 CD-IN pinheader 0/1 COM2 pinheader(optional) |
Form Factor | Micro-ATX (21cm x 16.8cm) |
Mounting | 6 mounting holes |
