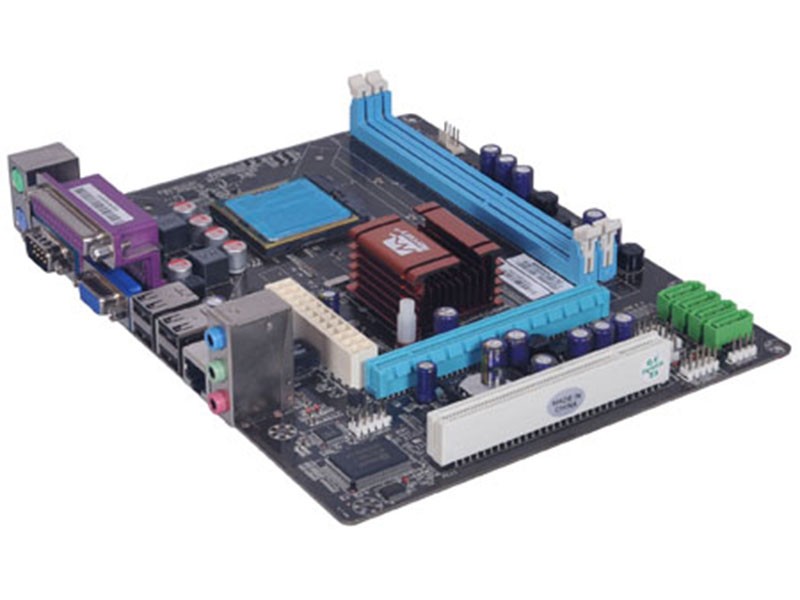

SIB H55M i3
SIB H55M i3

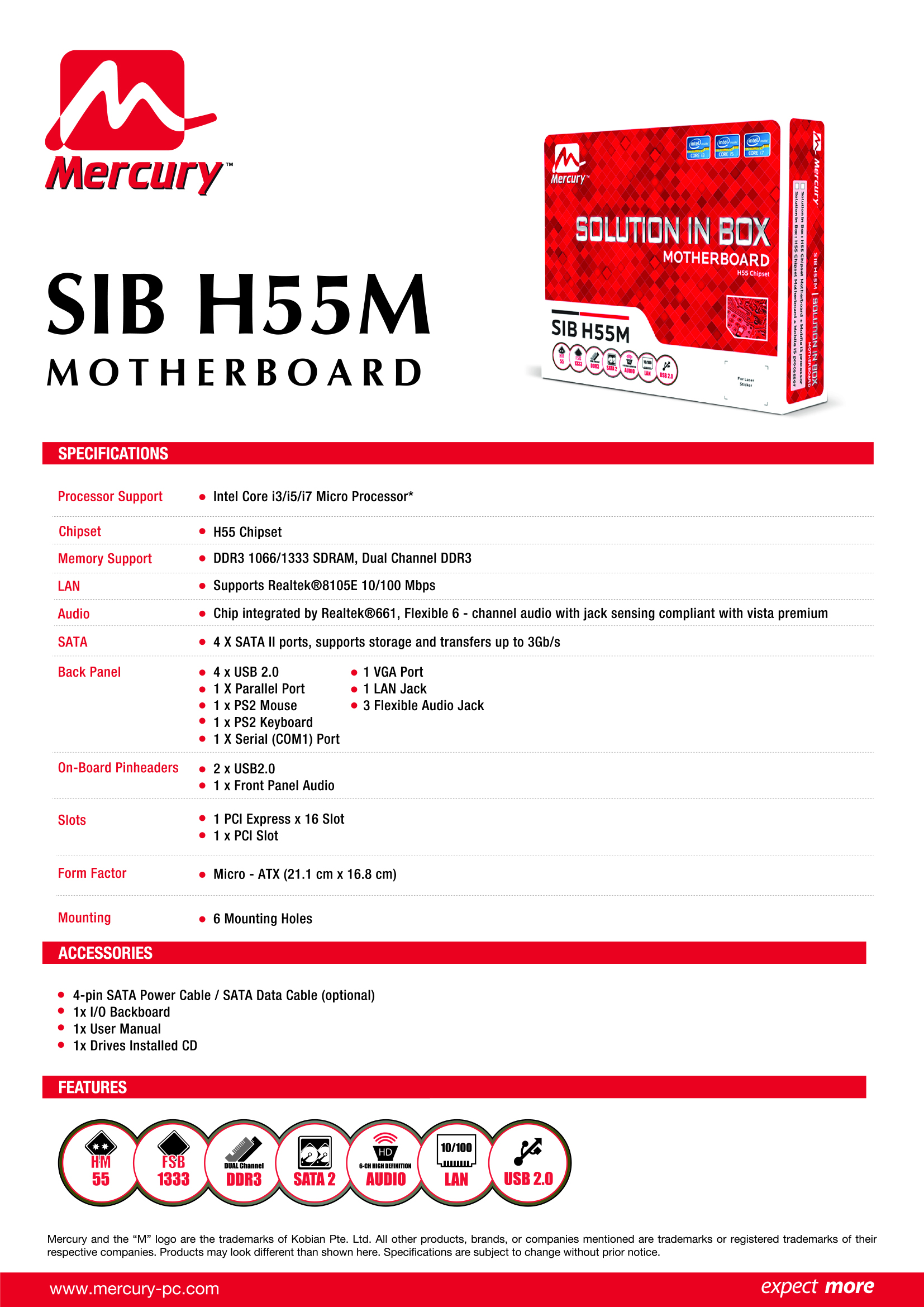

Specifications
Mercury H55M Works with Built-in Intel Core i3 processors. Also supports Dual Channel DDR3, USB2.0
| Chipset | Intel ® HM55 Chipset |
| Socket | G1 (rPGA988A) |
| Processor Support | Supports 1st Generation Mobile Core i3 Micro Processor |
| Memory Support | DDR3 1066/1333 SDRAM, Dual Channel DDR3 |
| LAN | Supports Realtek ® 8105E 10/100 Mbps |
| Audio | Chip integrated by Realtek ® 661, Flexible 6 - Channel audio with jack sensing compliant with vista premium |
| SATA | 4 x SATA II ports, supports storage and transfers up to 3Gb/s |
| Slots | 1 PCI Express x 16 slot, 1 x PCI Slot |
| On Borad Pinheaders | 2 USB 2.0 pinheaders, 1 Front Panel Audio Pinheader |
| Back Panel | 1 PS/2 Keyboard Port, 1 Parallel Port, 1 COM Port, 1 LAN Jack, 1 PS/2 Mouse Port, 1 VGA Port, 4 USB 2.0 Port, 3 Flexible Audio Jacks |
| Form Factor | Micro - ATX (21.1 cm x 16.8 cm) |
| Mounting | 6 Mounting Holes |
