PIH55Z
PIH55Z


Specifications

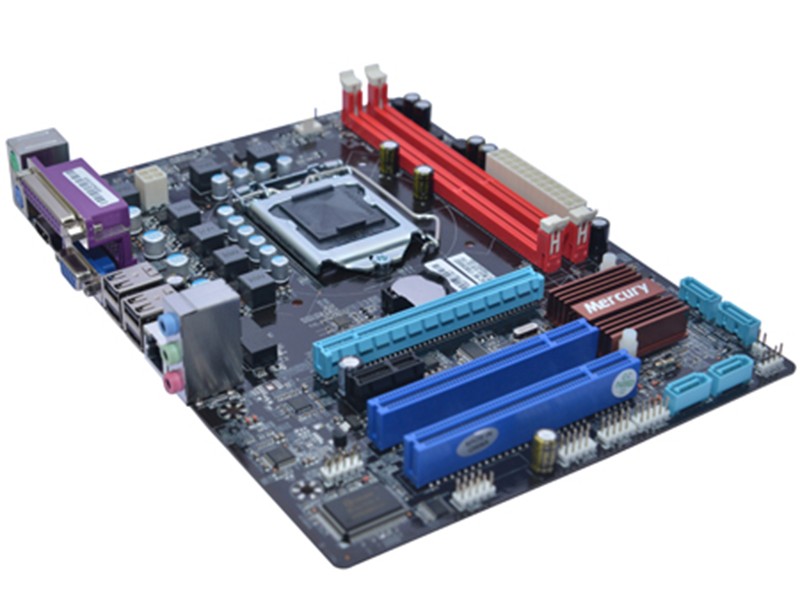

Mercury H55Z supports Intel 1st generation Core i3 / i5 / i7 serial processors in LGA1156 package. Also supports Dual Channel DDR3, USB2.0
Chipset Intel H55
CPU Support Intel 1st generation Core i3/i5/i7 Pentium/Celeron serials processor in LGA 1156 package
Memory support 2 x DDR3 DIMM Slot, Max8GB support DDR3 1066/1333MHz
Audio Realtek ALC662
LAN Realtek RTL8105E 100M or RTL8111F 1000M
Expansion Slots 1 x PCI Express x 16 2 x PCI Slot 1 x PCI Express x 1
Storage 4 x SATA 3Gb/s
USB 8 x USB 2.0/1.0 ports
Interface 1 x CPU Fan connector 2 x SATA Connectors 1 x Front - panel Audio Header 2 x USB Pin Headers 1 x Pin Header for speaker 1 x COM Pin Header 1 x Front-Panel Header 1 x 24Pin + 4Pin Power Connector
Back Panel I/O 1 x PS/2 Keyboard / Mouse port 1 x VGA Port 1 x RJ45 Port 4 x USB 2.0 Ports 1 x Com port 3 x Audio Jacks
