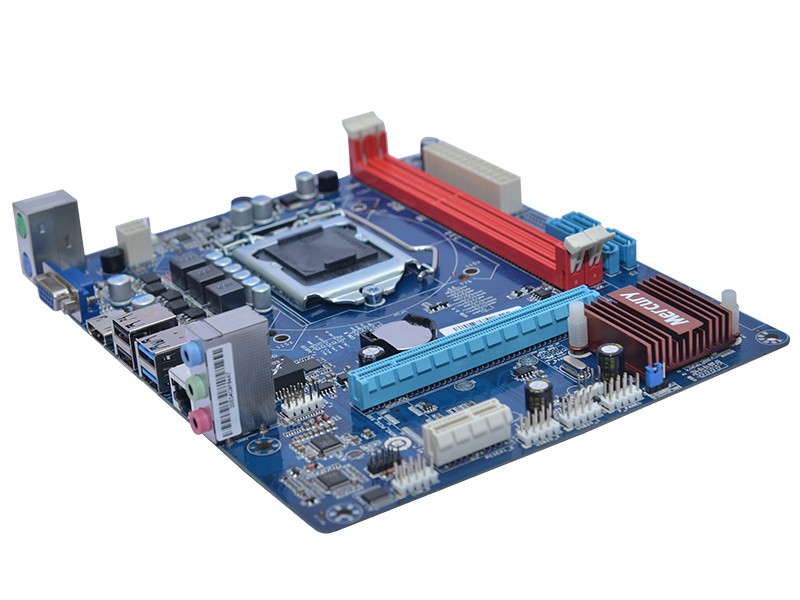

PIH81Z
PIH81Z


Specifications

Mercury H81Z supports Intel 4th generation Core i3 / i5 / i7 serial processors in LGA1150 package. Also supports Dual Channel DDR3, USB3.0 and HDMI. 4th Generation Core i3/i5/i7 The latest Intel microarchitecture 4TH generation processors delivers significant performance advancements including vastly improved graphics, battery life, and security. The Intel Hyper-Threading Technology allows each processor core to work on two tasks at the same time for greater multitasking. Experience stunning 3-D visuals and faster, more advanced video and photo editing.
Processor Support • Supports Intel Core i3/i5/i7 Serials processors in LGA1150 package. • Support Intel 4th generation multi-core processors
Chipset Intel H81 Chipset
Memory Support • DDR3 1600/1333 SDRAM • 2DDR3 DIMMs (240 pin / 1.5V) (For more information on compatible components, please check with manufacturer)
LAN Supports Realtek 8111F 1000 Mbps
Audio • Chip integrated by Realtek 662 • Flexible 6-channel
SATA
Back panel • 1 PS/2 keyboard port • 1 PS/2 mouse port • 1 VGA port • 1 HDMI port • 2 USB 3.0 Ports • 2 USB 2.0 Ports • 1 LAN Jack • 3 flexible audio Jack
On-Board Pinheaders • 2 USB 2.0 pinheaders / Connectors • 1 COM pinheader • 1 Front Panel Audio pinheader
Slots
Form Factor
Accessories • 4-pin SATA power cable / SATA data cable (optional) • 1 x I/O Backboard • 1 x User Manual • 1 x Drives installed CD
